From Docker Hub, switch to Azure Container Registry & AKS

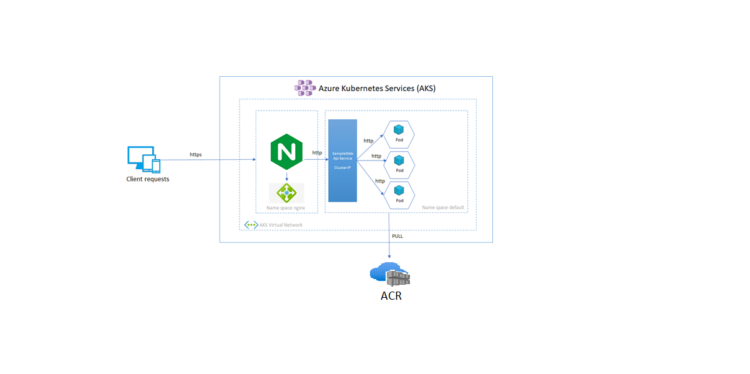

We previously looked at how to configure an ingress controller for the Azure Kubernetes Service (AKS) using TLS/SSL. In this section, we’ll look at how to construct an Azure container registry using Terraform and how to utilize it in our deployment. We’ll also look at some of the benefits of an acr :

– Ability to find, pull, and push Docker images
– Integration with other Azure services
– Built-in security features
– Role-based access control
– Image signing

This article is a part of a series:

1. Part 1 : How to setup nginx reverse proxy for aspnet core apps with and without Docker compose
2. Part 2 :How to setup nginx reverse proxy && load balancer for aspnet core apps with Docker and azure kubernetes service
3. Part 3 : How to configure an ingress controller using TLS/SSL for the Azure Kubernetes Service (AKS)
4. Part 4 : switch to Azure Container Registry from Docker Hub
5. Part 5: Using Azure DevOps, Automate Your CI/CD Pipeline and Your Deployments
6. Part 6 : Using Github, Automate Your CI/CD Pipeline and Your Deployments
7. Part 7 : Possible methods to reduce your costs


   Part 1 : Creating Azure container registry (ACR)

   The first step is to set up the Azure container registry and ensure that it is connected to our Kubernetes cluster.

   Terrafrom Block to create the acr :

   resource "azurerm_container_registry" "acr001" {
     name                = "containerRegistryachraf"
     resource_group_name = azurerm_resource_group.rg.name
     location            = azurerm_resource_group.rg.location
     sku                 = "Standard"
   }


   resource "azurerm_role_assignment" "roleforaks" {
     principal_id                     = azurerm_kubernetes_cluster.cluster.kubelet_identity[0].object_id
     role_definition_name             = "AcrPull"
     scope                            = azurerm_container_registry.acr001.id
     skip_service_principal_aad_check = true
   }

   Now that we have added this block to our infrastructure, acr will be ready to use, but first we must deploy an application to our repository. To do this, we will take the same dotnet application and simply add the word “acr” to the index page.

   Part 2 : Deploying to ACR

   Install Docker first, then create a fresh copy of our application to test out the Azure Container Registry.

   To access your container registry, use the following command:

   docker login containerregistryname.azurecr.io.

   Next, let’s tag and push our image:

   docker tag hello-world containerregistryname.azurecr.io/hello-world
   docker push containerregistryname.azurecr.io/hello-world

   once we deployed our application it will look like the below image inside ACR :


   Part 3: Create our deployment and updating our ingress

   In this part, we are creating a new deployment as we are adding a new application  :

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: backend-restapp-acr
     namespace: ingress
     labels:
       app: backend-restapp-acr
       tier: backend
   spec:
     replicas: 2
     selector:
       matchLabels:
         app: backend-restapp-acr
     template:
       metadata:
         labels:
           app: backend-restapp-acr
           tier: backend
       spec:
         containers:
           - name: backend-restapp-acr
             image: containerregistryachraf.azurecr.io/hello-world:latest
             ports:
               - containerPort: 5000
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: my-backend-serviceacr ## VERY VERY IMPORTANT - NGINX PROXYPASS needs this name
     labels:
       app: backend-restapp-acr
       tier: backend
   spec:
     selector:
       app: backend-restapp-acr
     ports:
       - name: http
         port: 5000 # ClusterIP Service Port
         targetPort: 5000 # Container Port
     type: ClusterIP


   using the following commands, you can deploy our application:

   kubectl apply -f 01-backend-acr-deployment.yml

   Great , now if we try to check our services using :

   kubectl get services --namespace ingress

   we will get a new service in our list :
   Also , if we check our deployements :

   kubectl get deployments --namespace ingress



   Now let’s update our ingress with our new app :

   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: webapp-ingress
     namespace: ingress
     annotations:
       nginx.ingress.kubernetes.io/ssl-redirect: "false"
       nginx.ingress.kubernetes.io/use-regex: "true"
       nginx.ingress.kubernetes.io/rewrite-target: /\
   spec:
     ingressClassName: nginx
     rules:
     - http:
         paths:
         - backend:
             service:
               name: my-backend-service
               port:
                 number: 5000
           path: /
           pathType: Prefix
         - backend:
             service:
               name: my-backend-serviceacr
               port:
                 number: 5000
           path: /acr(/|$)(.*)
           pathType: Prefix
         - backend:
             service:
               name: my-nginx-service-01
               port:
                 number: 80
           path: /webapp1(/|$)(.*)
           pathType: Prefix
         - backend:
             service:
               name: my-nginx-service-02
               port:
                 number: 80
           path: /webapp2(/|$)(.*)
           pathType: Prefix
         - backend:
             service:
               name: my-nginx-service-03
               port:
                 number: 80
           path: /webapp3(/|$)(.*)
           pathType: Prefix
     - host: yourdomaine.com # change the IP address here
       http:
         paths:
         - backend:
             service:
               name: my-backend-service
               port:
                 number: 5000
           path: /
           pathType: Prefix
         - backend:
             service:
               name: my-backend-serviceacr
               port:
                 number: 5000
           path: /acr
           pathType: Prefix
         - backend:
             service:
               name: my-nginx-service-01
               port:
                 number: 80
           path: /webapp1
           pathType: Prefix
         - backend:
             service:
               name: my-nginx-service-02
               port:
                 number: 80
           path: /webapp2
           pathType: Prefix
         - backend:
             service:
               name: my-nginx-service-03
               port:
                 number: 80
           path: /webapp3
           pathType: Prefix

   Let’s deploy and see the results :

   kubectl apply -f app-ingress.yml

   Now if we visit the url of our ingress using the /acr prefix that we have created we should find the new deployment that we have added :
   Hope this was helpful ^^
